Bouffant Cap Machine
The LA807 Bouffant Cap Machine is designed for automatic production of nonwoven strip caps, bouffant caps and microphone cover products. It combines PLC control, HMI operation, ultrasonic welding and automatic material tension control for stable disposable protective product manufacturing.
Technical Parameters
| Model | LA807 |
| Machine Size | 3000 (L) x 740 (W) x 1100 (H) mm |
| Control Panel | HMI / touch screen and buttons |
| Voltage | 220V |
| Frequency | 50 / 60Hz |
| Power | 7.5KW |
| Capacity | 90-110 pieces per minute |
| Ultrasonic Frequency | 18KHz |
| Machine Weight | 700KG |
| Product Specification | Standard type: 18-26 inches; special type can be customized by sample |
| Material Thickness | 9-10 g/m2 |

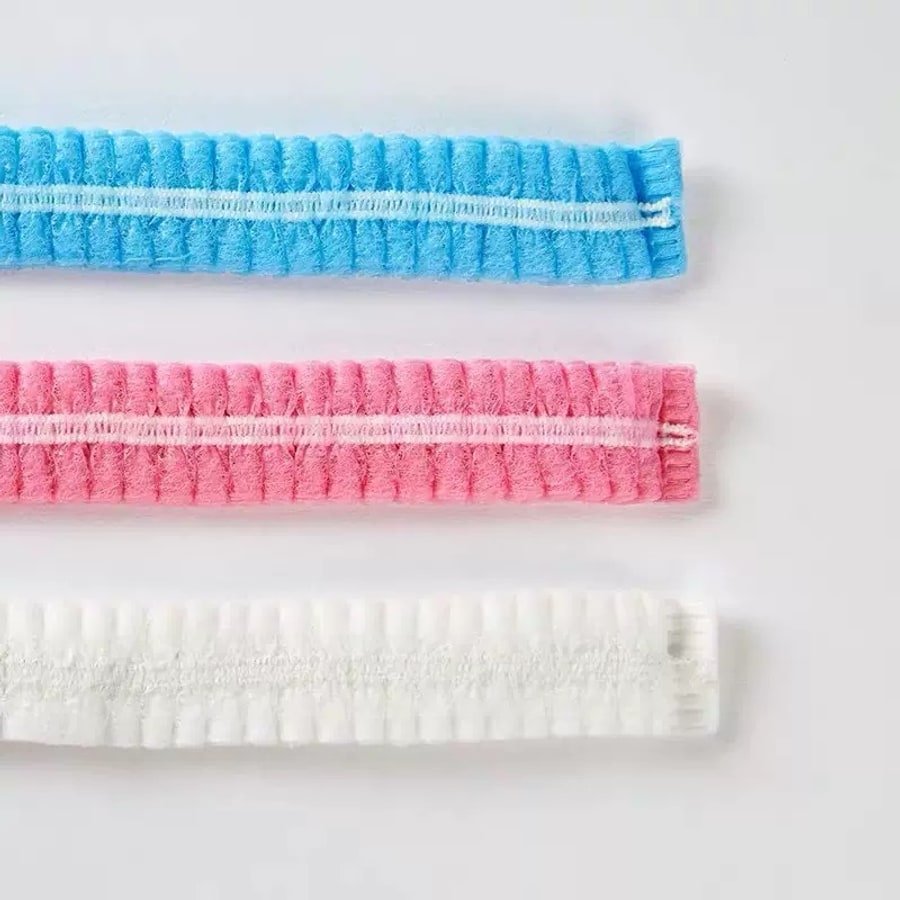

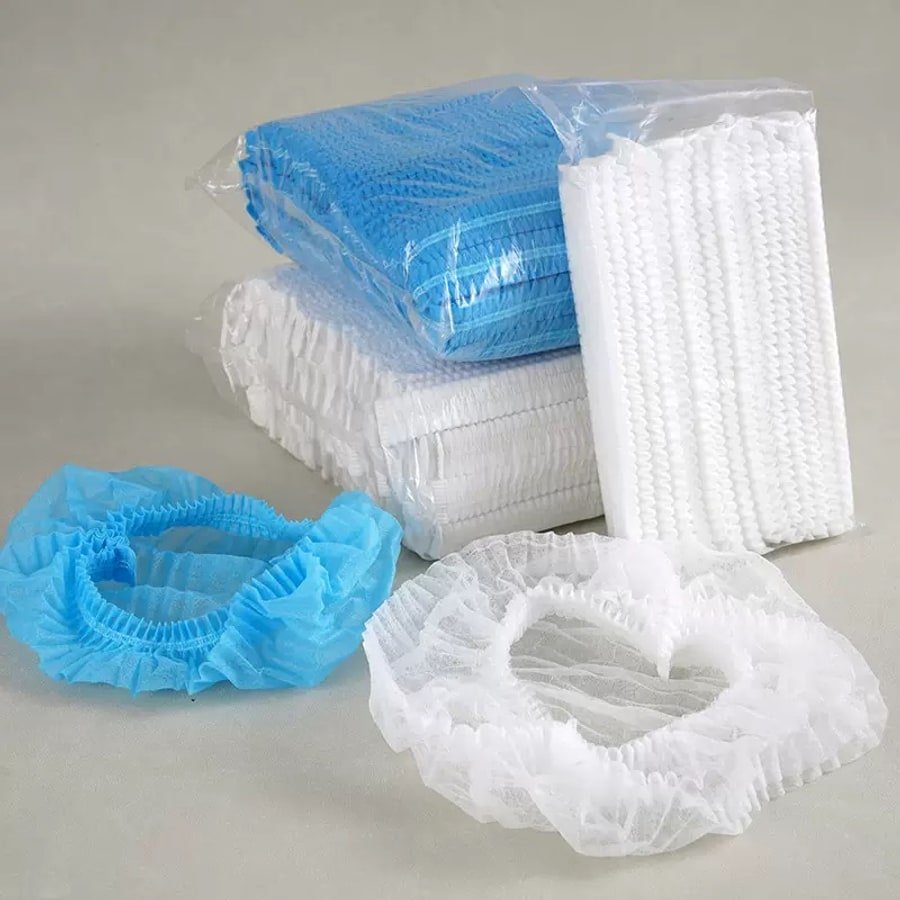

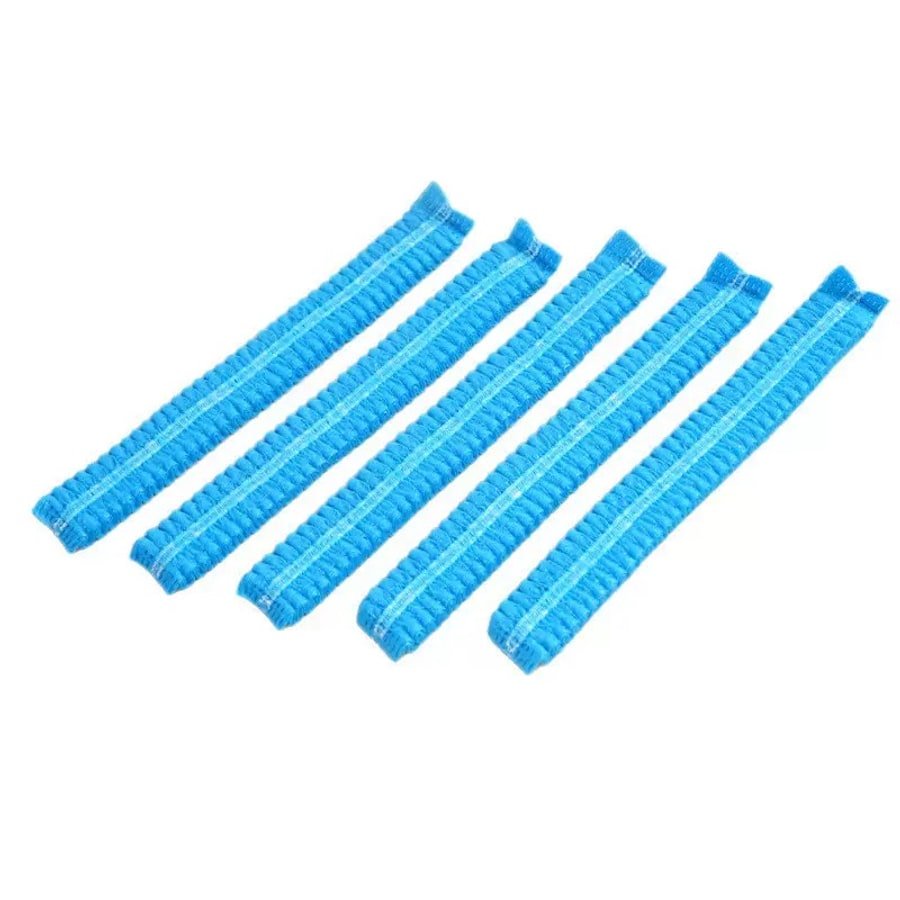

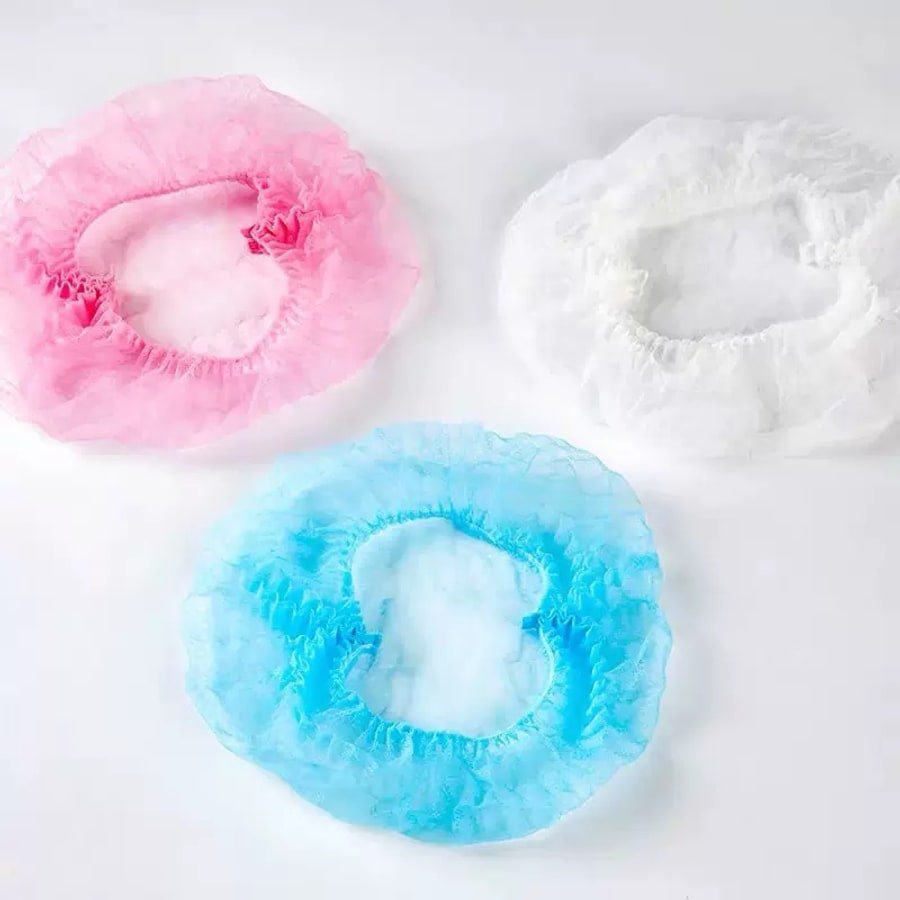

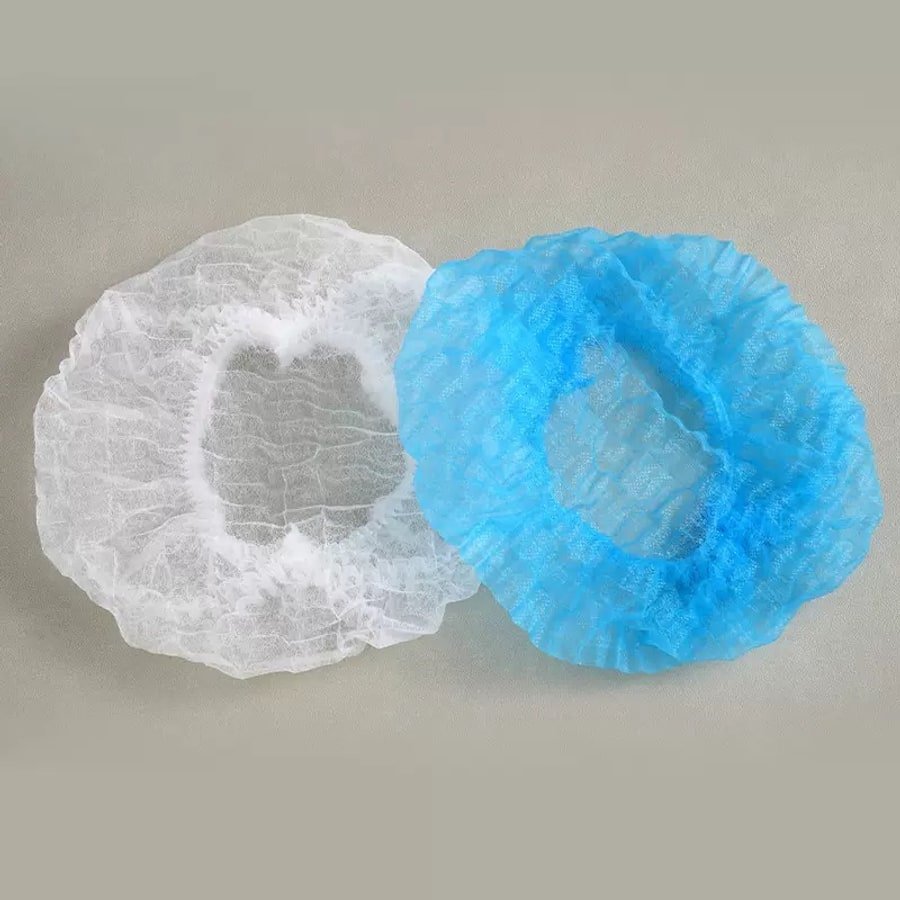

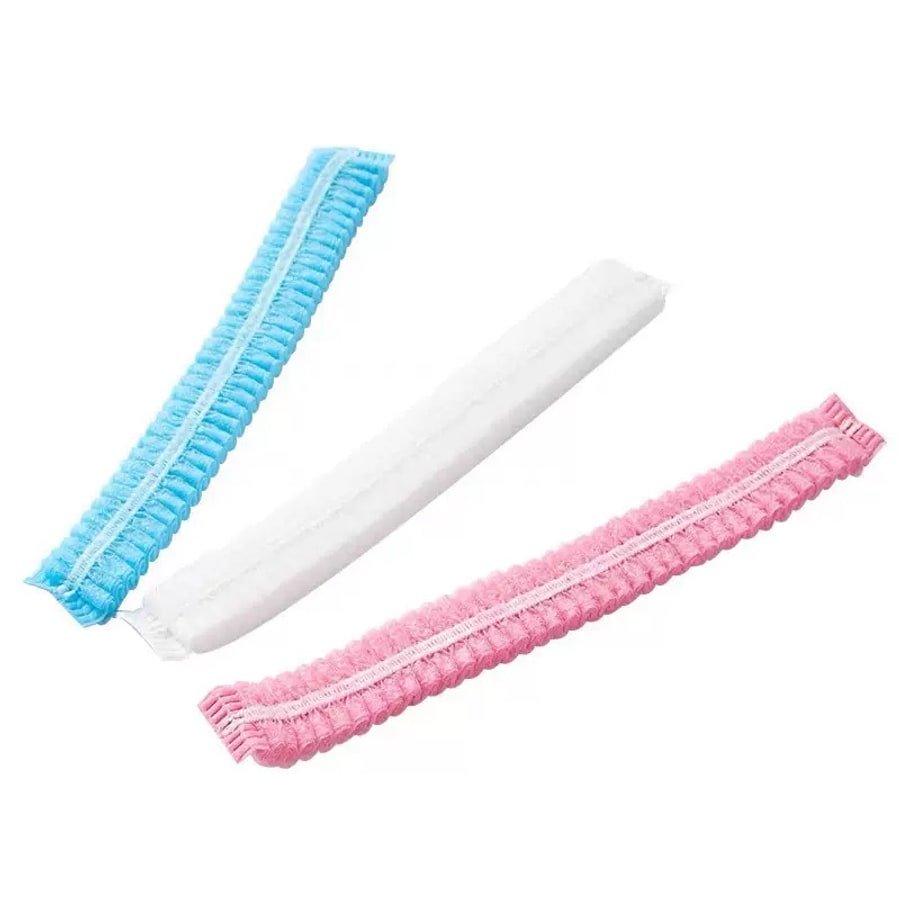

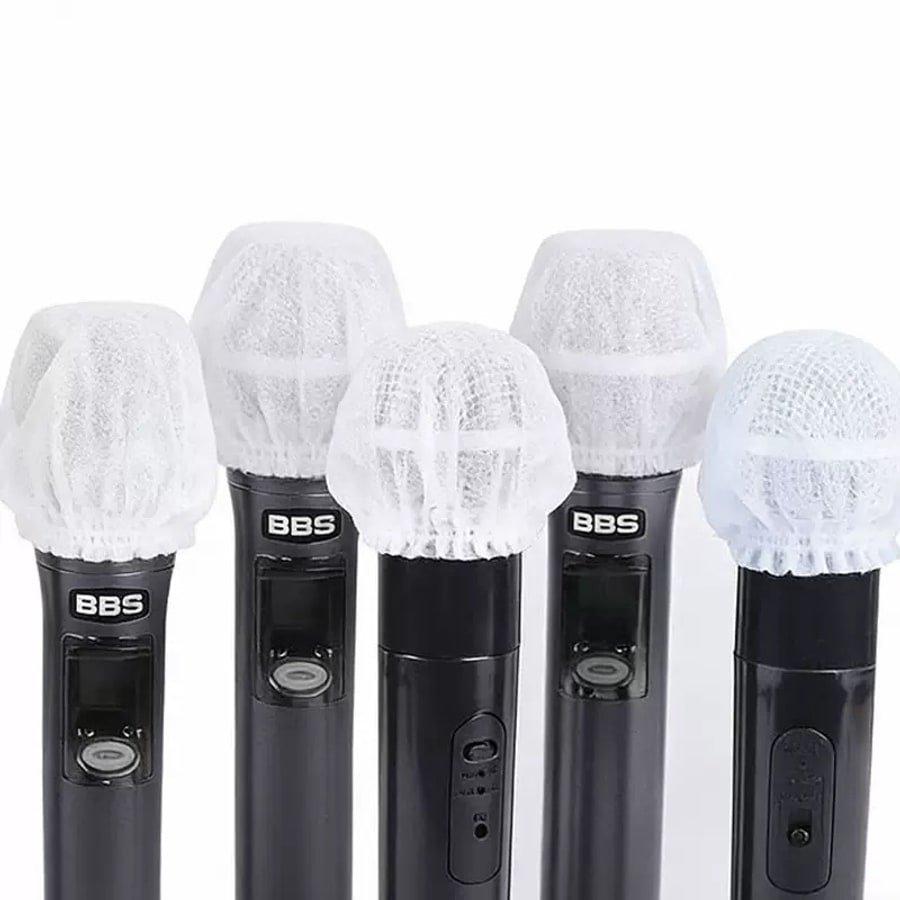

Finished Mask Samples

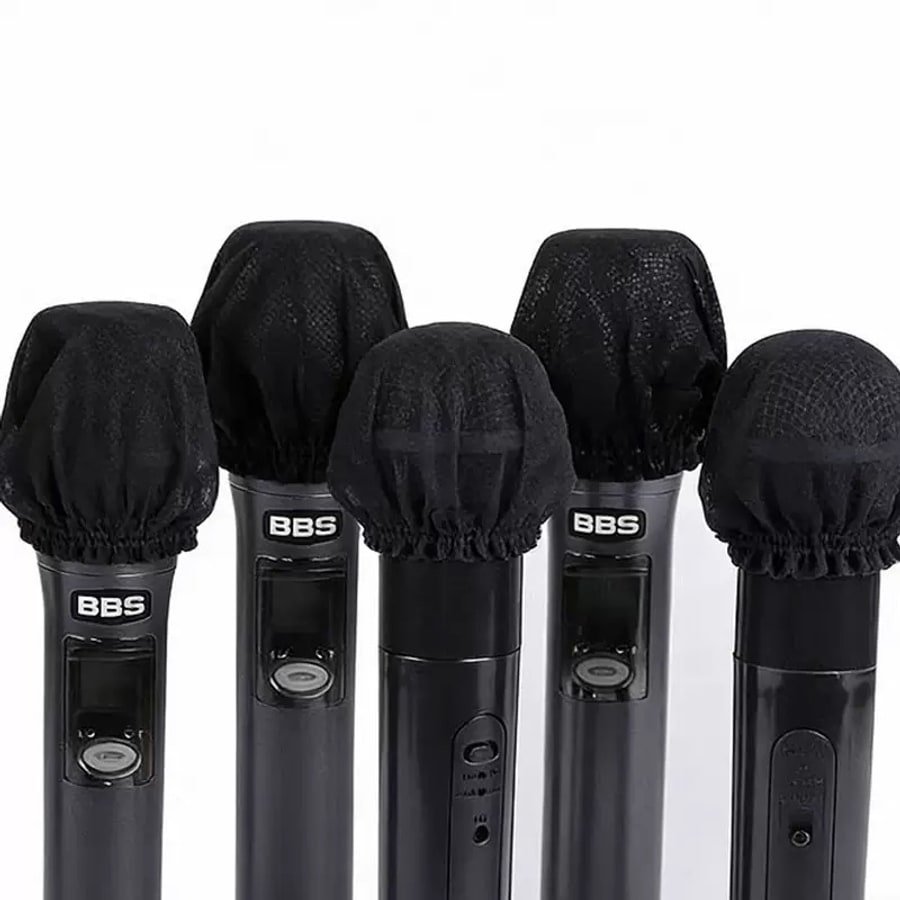

Finished samples include microphone cover products and strip cap products made for disposable protection and hygiene applications.

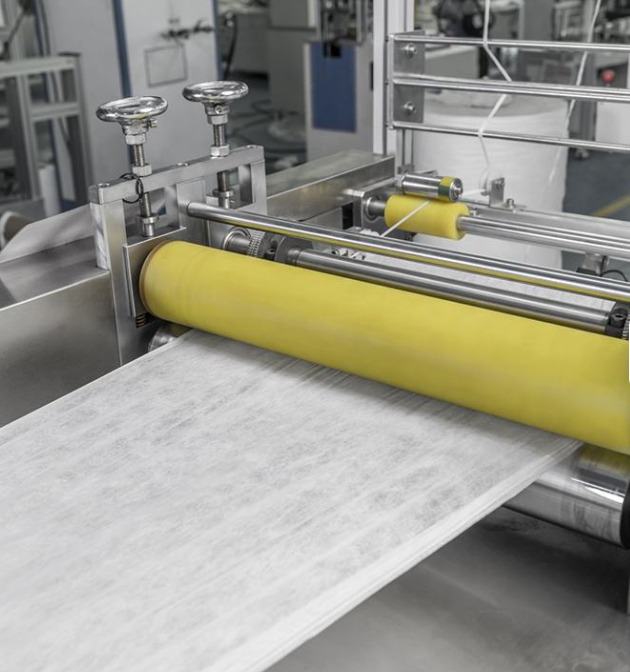

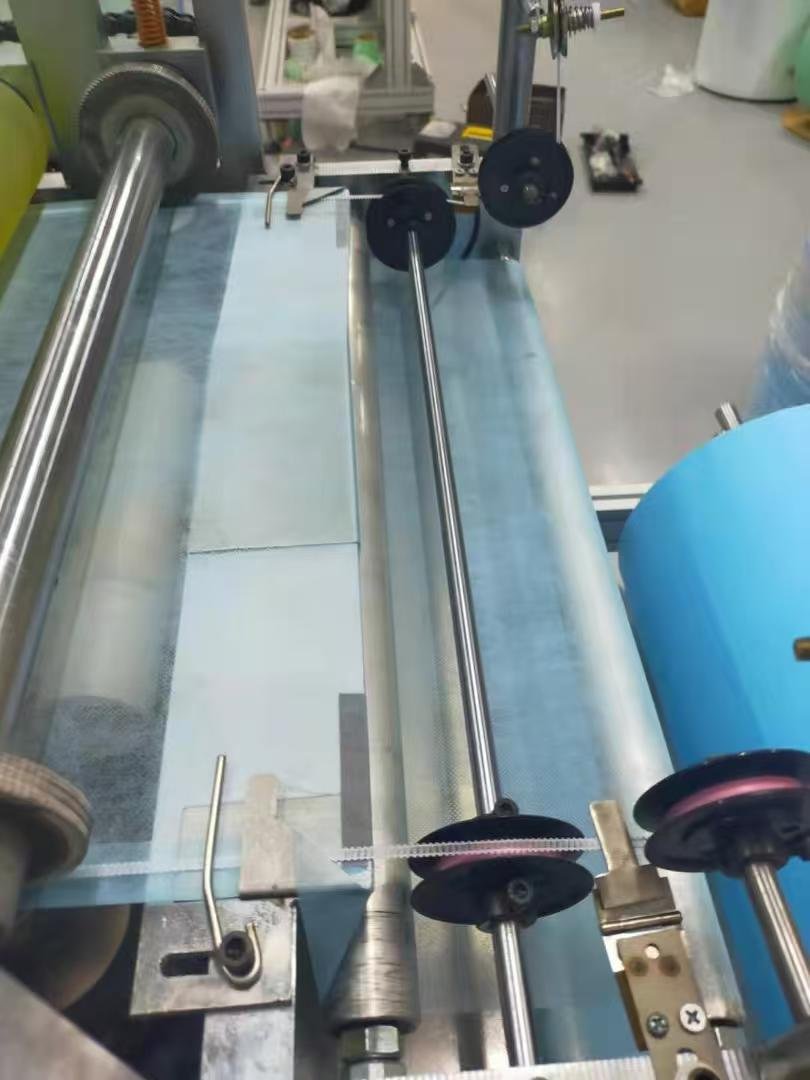

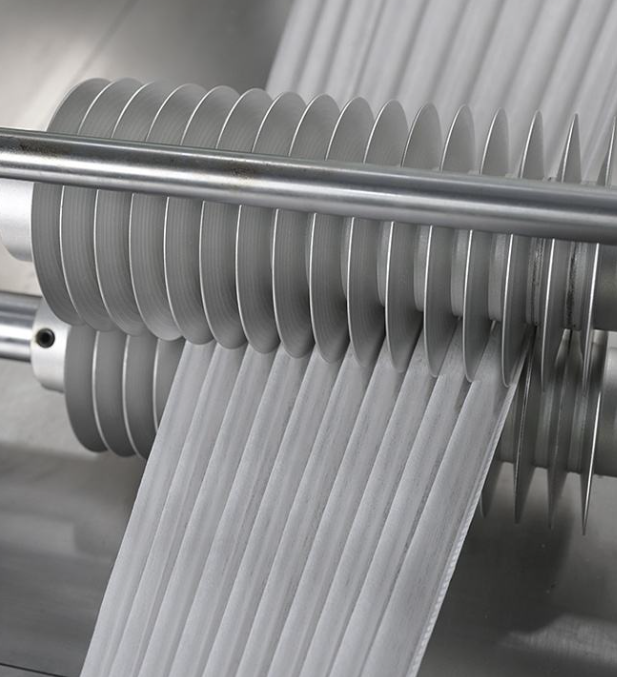

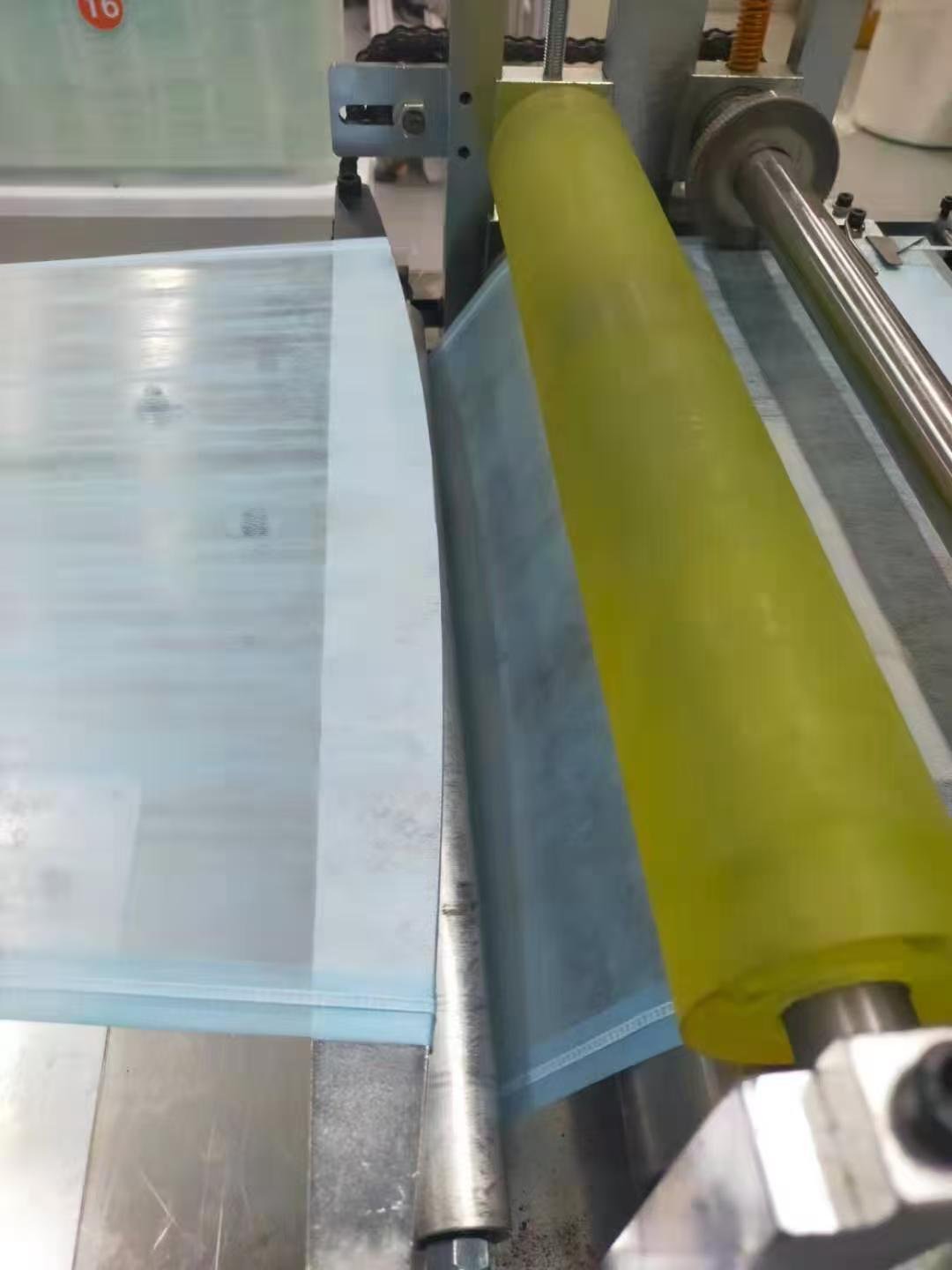

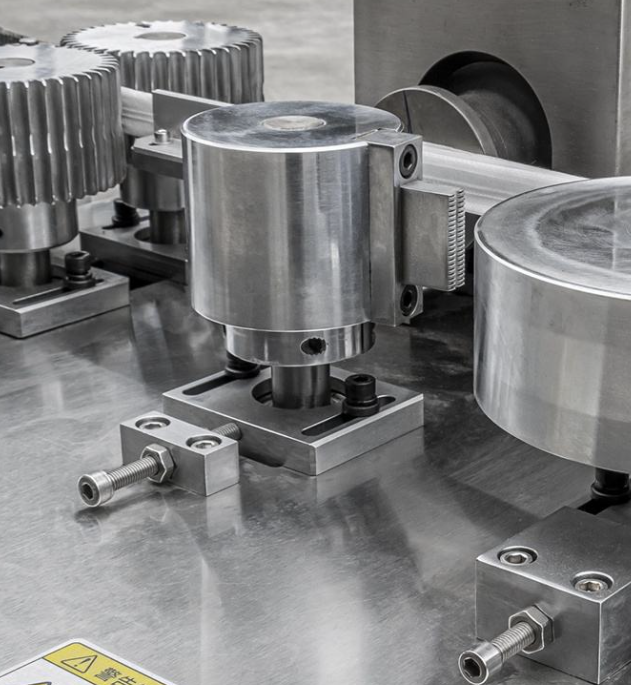

Machine Details

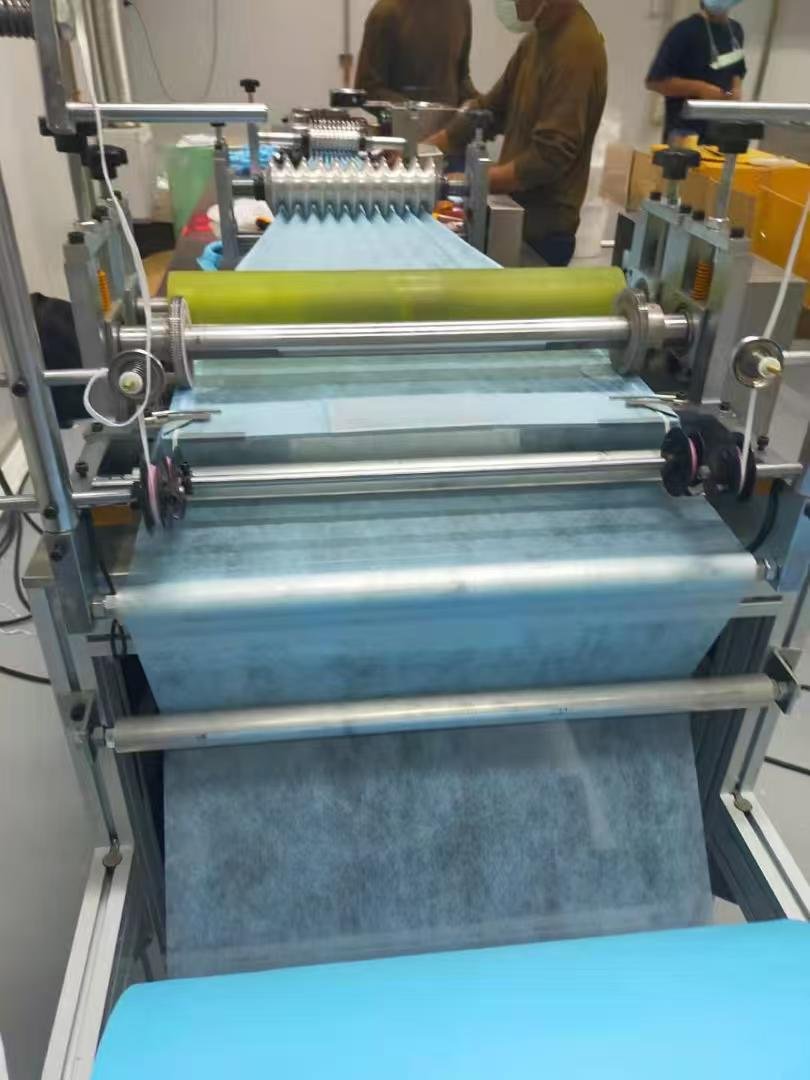

Detail images show key working areas and machine structure for the LA807 bouffant cap machine.

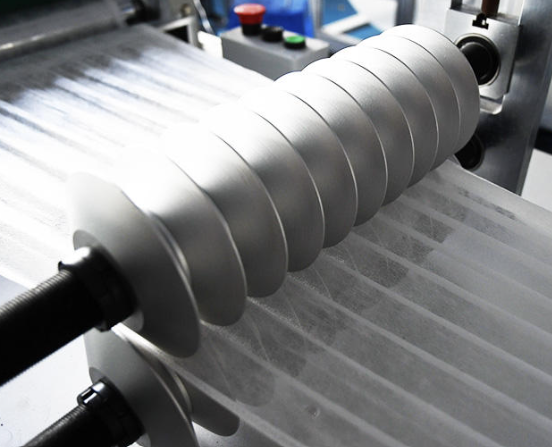

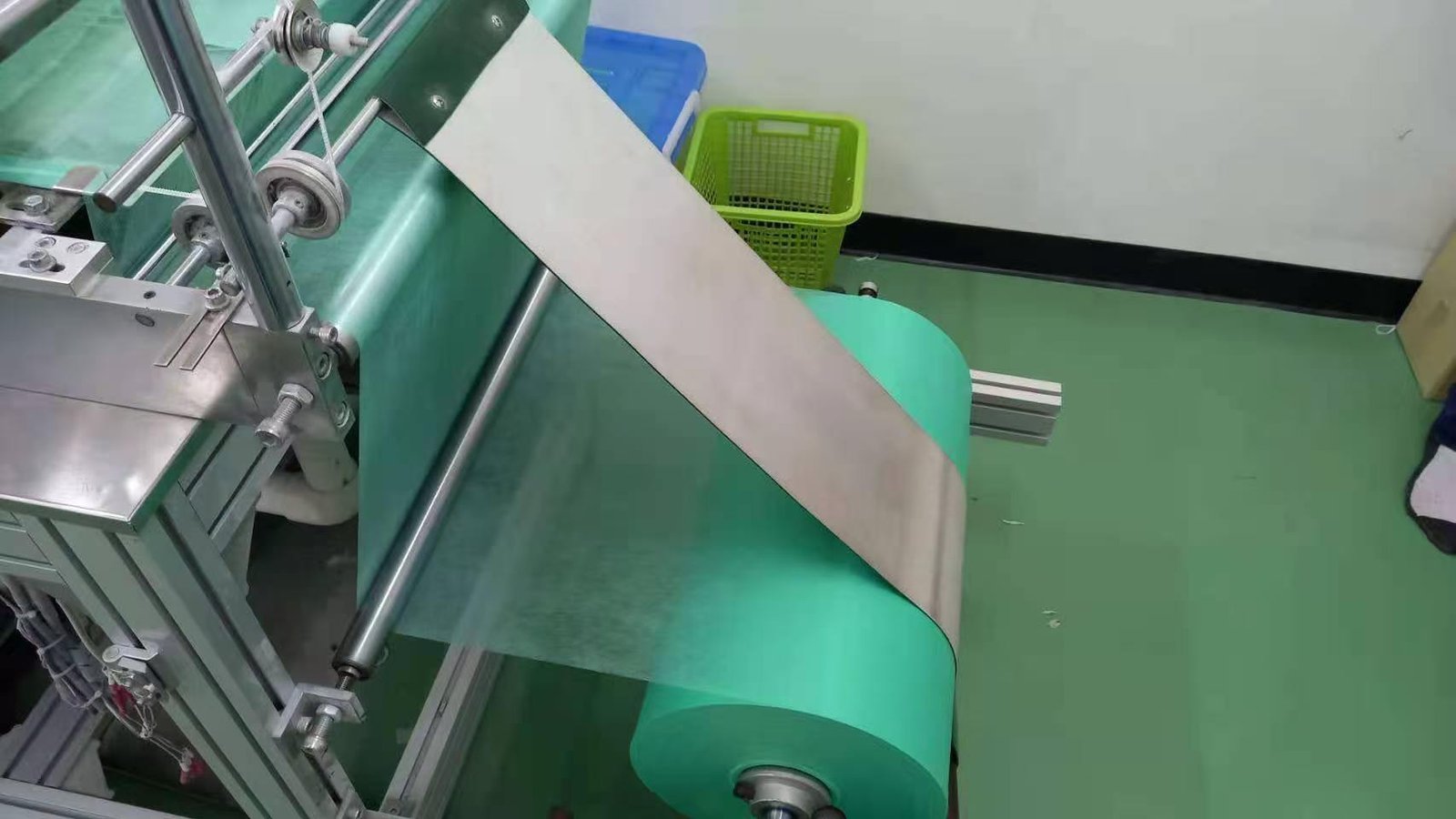

Manufacturing Process

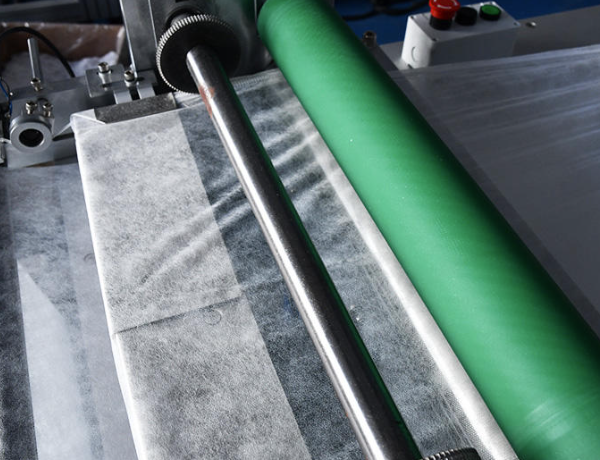

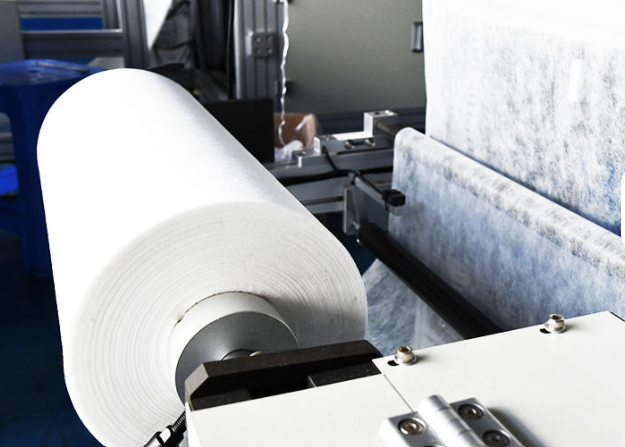

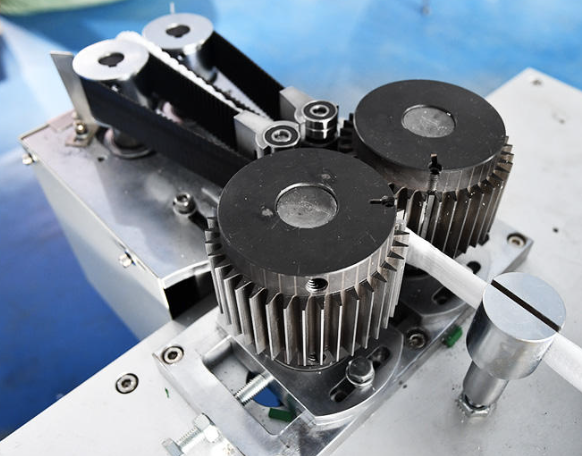

Manufacturing process images show feeding, forming, welding and output stages for LA807 bouffant cap and microphone cover production.

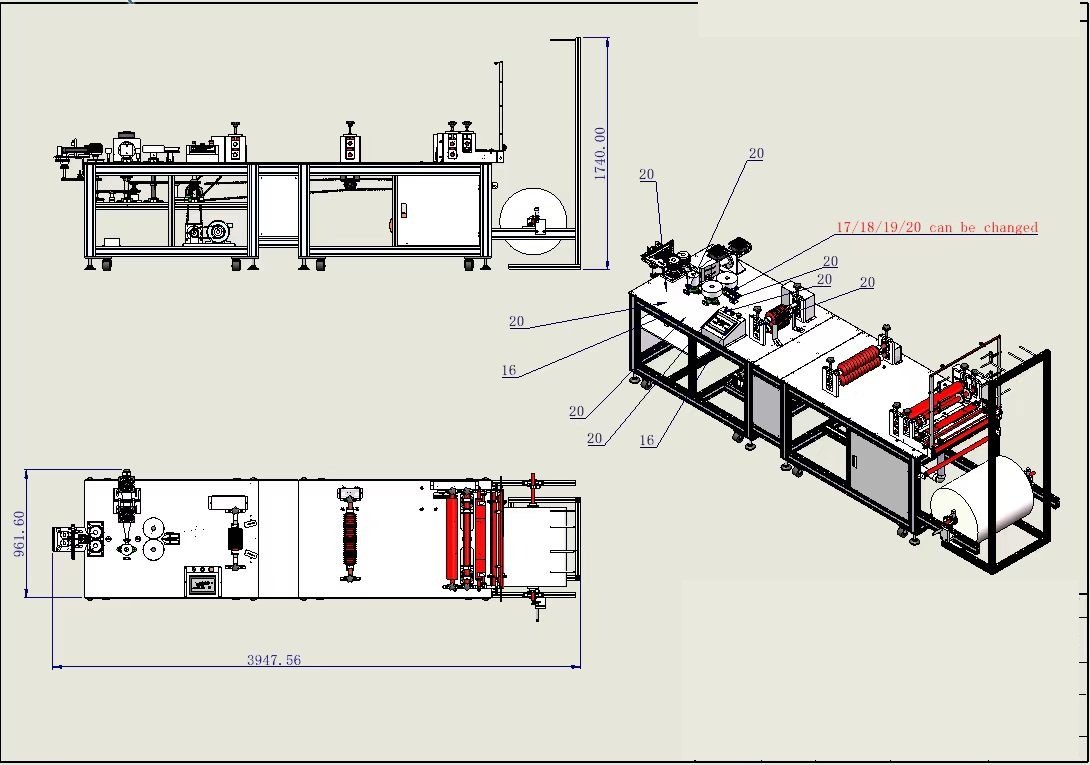

Installation Instruction
The installation layout has been cleaned to remove unrelated drawing title information while keeping the machine layout, main drawing and dimension lines.
Need a LA807 Bouffant Cap Machine?
Send your finished product size, material specification and target capacity. Our team will help confirm a suitable production solution.
